The different types of adhesive bond failure and what they mean

Thomas Besley | 3 min. read

The different types of adhesive bond failure and what they mean

When the adhesive bond fails, it’s not always easy to establish the cause of the failure. You are looking at two (maybe more) substrates that have separated and you don’t know what to do. You’re wondering where you can start assessing to try and figure out what happened.

We know that feeling. Here at Forgeway, we manufacture industrial adhesives. Over the years we have witnessed countless occasions where the adhesive bond fails. Experience has taught us how we can assess the bond to try and determine the cause of the failure.

That’s why we wrote this article. We want to help you understand the different bond failures so you can work out the reason why the bond failed. By the end of the article, you will know the five different types of bond failure. You will then be able to start working out the cause of the failure.

The different types of bond failure

Cohesive failure

This is where there is adhesive on both surfaces. The adhesive itself has broken. The bond between the adhesive and the substrates is stronger than the adhesive itself.

There are a few reasons why this could be. Sometimes it could be that the bondline was too thick. However, if the bondline is between 2mm and 4mm, this likely isn’t the issue.

The other reason for cohesive failure is an inadequate adhesive. If the adhesive doesn’t have enough strength, it is likely to cohesively fail. If the adhesive is too soft, it can also cohesively fail.

An adhesive that is not fit for purpose will cause cohesive failure.

Cohesive failure

Thin-film cohesive failure

This is where there is a thin film of adhesive on one surface. Sometimes this film is so thin that you struggle to see it. The adhesive reaches the limits of its strength and will tear near the surface of one substrate.

This usually only happens when there is insufficient surface preparation and an inadequate adhesive. Using a primer or surface activator can stop this type of failure from taking place.

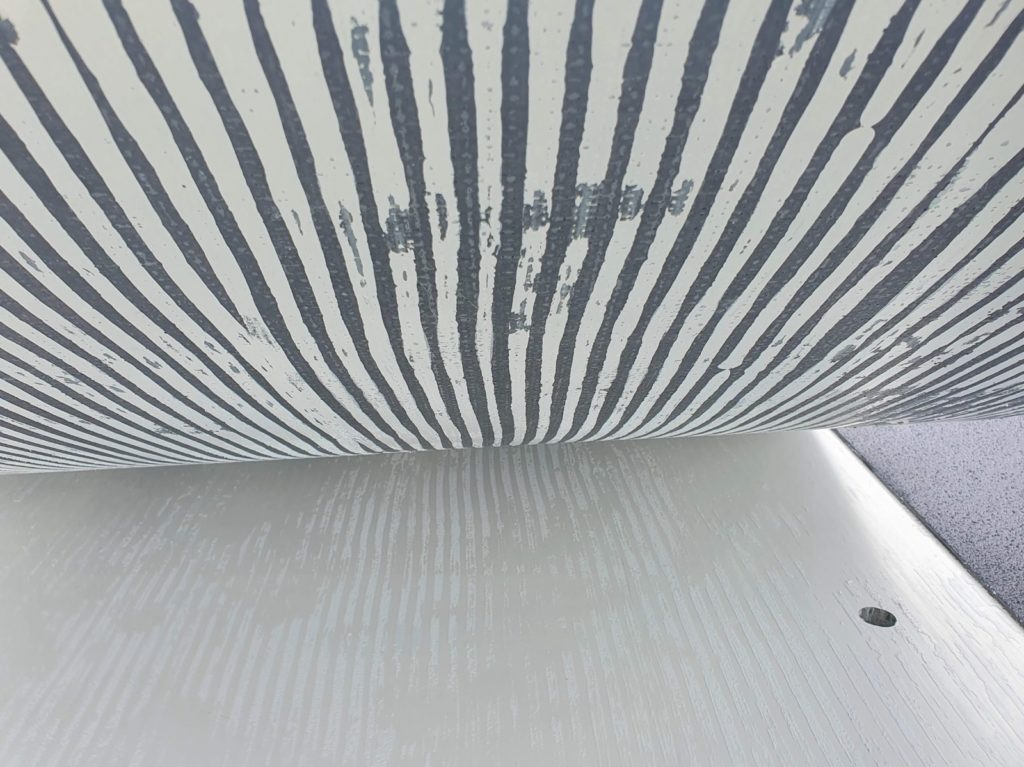

Thin film cohesive failure
Thin film cohesive failure leaves a small amount of adhesive on one surface

Adhesive failure

This is where there is adhesive on only one of the surfaces. This is because of an improper bond between the surface and the adhesive. We would often call this ‘delamination’.

The reason for this delamination is usually due to the surface energy of the substrate. If the surface energy of the substrate is lower than that of the adhesive, the bond will adhesively fail.

Typical low surface energy substrates are; polypropylene, polyethylene (HDPE), or Teflon (PTFE).

The other cause of adhesive failure is improper surface preparation. If you don’t prepare the surface properly, the bond is likely to cohesively fail.

A lot of substrates will have a protective layer on the surface that some people don’t remove. If you don’t prepare the surface correctly, you will not remove the contaminants. The bond is likely to adhesively fail.

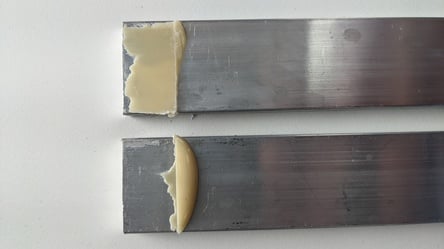

Adhesive failure is where one surface has no adhesive left
Adhesive failure is where there is no adhesive on one surface

Substrate failure

Substrate failure is where the actual material has broken rather than the bond. The bond is stronger than the material itself, causing the material to break.

When testing adhesives, people will often use substrate failure as a desirable result. It shows that the bond isn’t going to fail before the substrate does. But sometimes, substrate failure can be down to poor joint design. And when you use substrate failure as the benchmark for success, it may not necessarily prove that you have a strong bond.

Substrate failure
Substrate failure is where the bond is stronger than the substrate itself

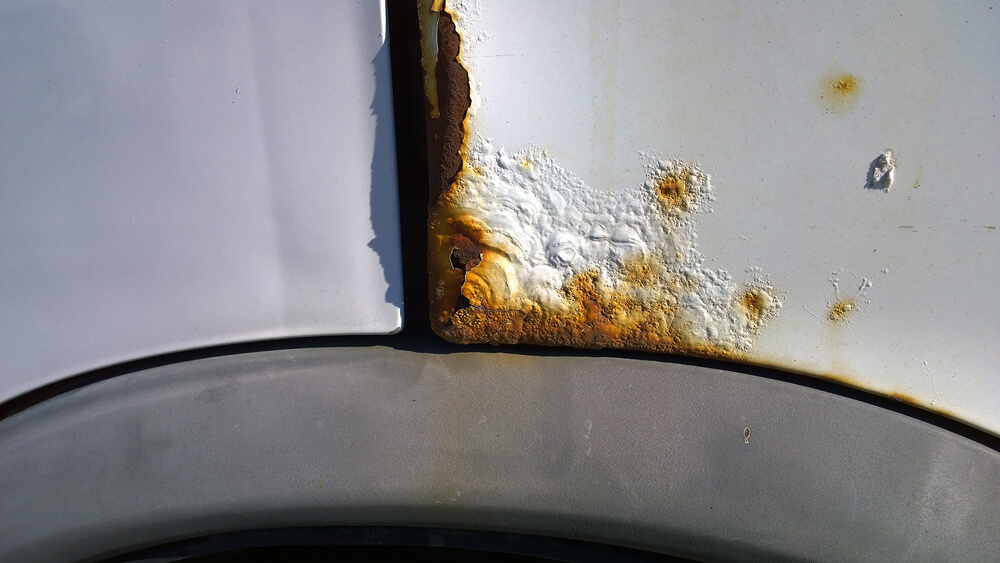

Corrosion failure

Corrosive failure is similar to adhesive failure. The adhesive will come off one surface but not the other. However, the cause of the separation is different.

Corrosion failure is where the metal corrodes to the point where it makes the surface unbondable. Poor choice of substrate or incorrect preparation methods will cause corrosion failure.

Corrosion can cause adhesion to weaken and fail

Now you know the types of adhesive failure, what next?

The next steps will depend very much on the type of failure you have experienced.

If you have experienced cohesive failure, you will need to look for an alternative adhesive option. Usually, we advise you to look at using an adhesive with the same base chemistry (so you don’t need to worry about adhesion) but with greater strength. However, that’s only if you have ruled out bondline thickness causing cohesive failure.

Thin-film cohesive failure will require you to look at a stronger adhesive with a different surface preparation method (like priming).

Adhesive failure is usually caused by the substrate. So, you first need to establish the surface energy of the substrate. Once you have determined the surface energy, you can choose an adhesive that will bond accordingly.

If you experience substrate failure, you need to decide whether that is a problem with the joint design or the adhesive itself. You may need our help to determine why you have experienced substrate failure. But, you may find that you have prioritised strength over flexibility.

Whatever mode of failure you have experienced, we are here to help. You can get in touch with us if you still need help deciding which mode of failure you have experienced.

You will also need to know more about your substrate to ensure you have the right adhesive match. By following the link below, you can find out more about our free consultation which will help you find out the details of your substrate.
